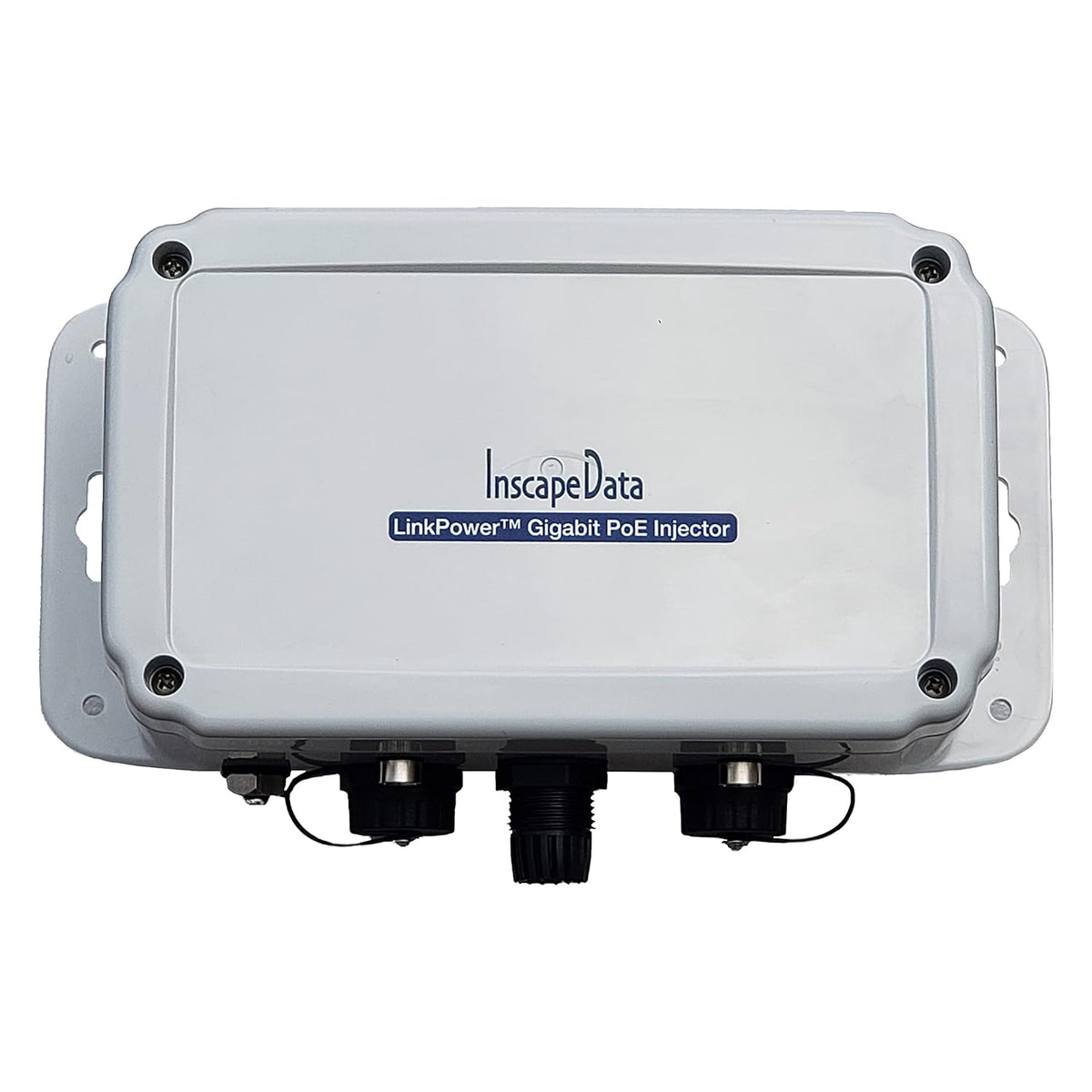

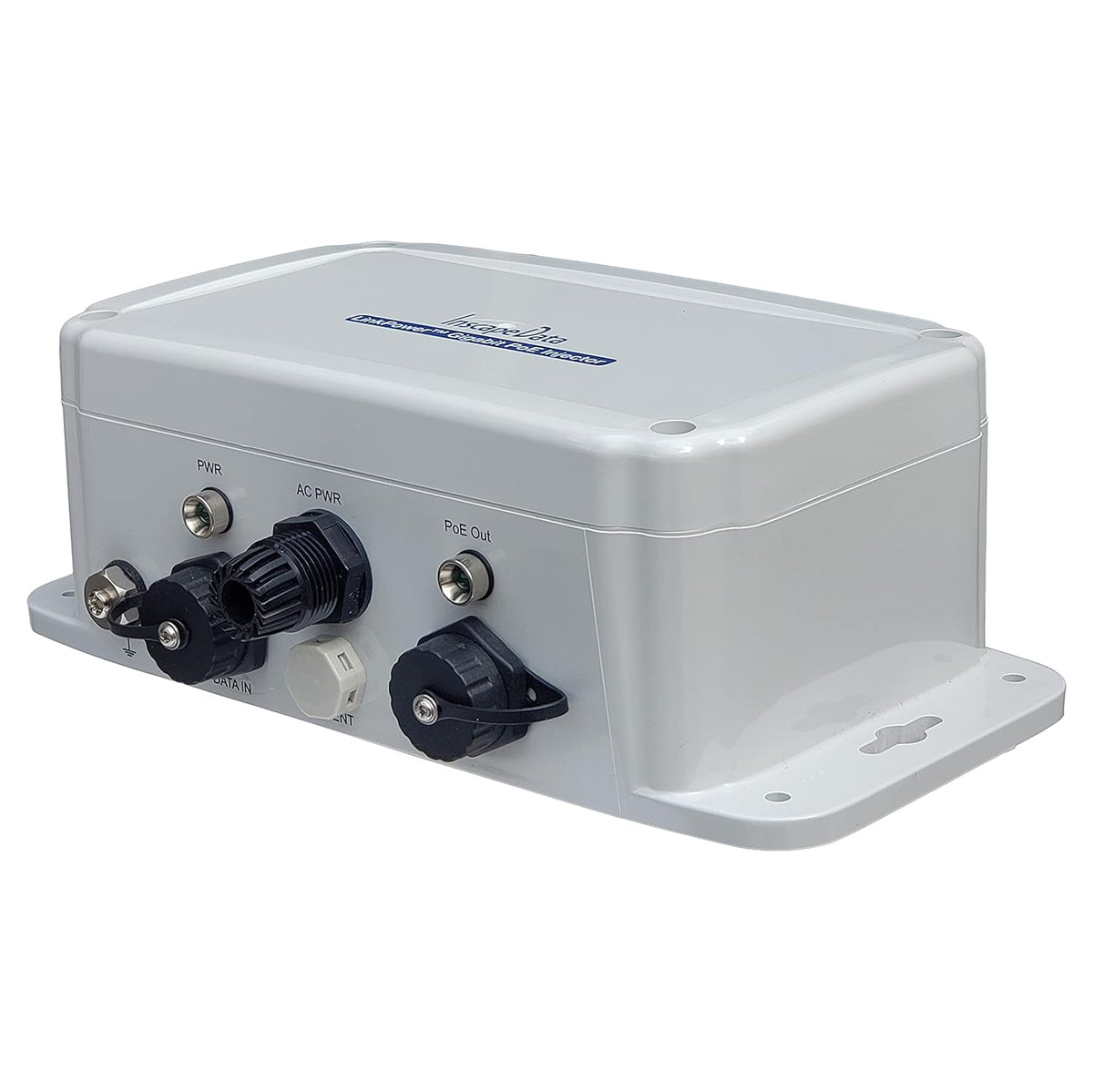

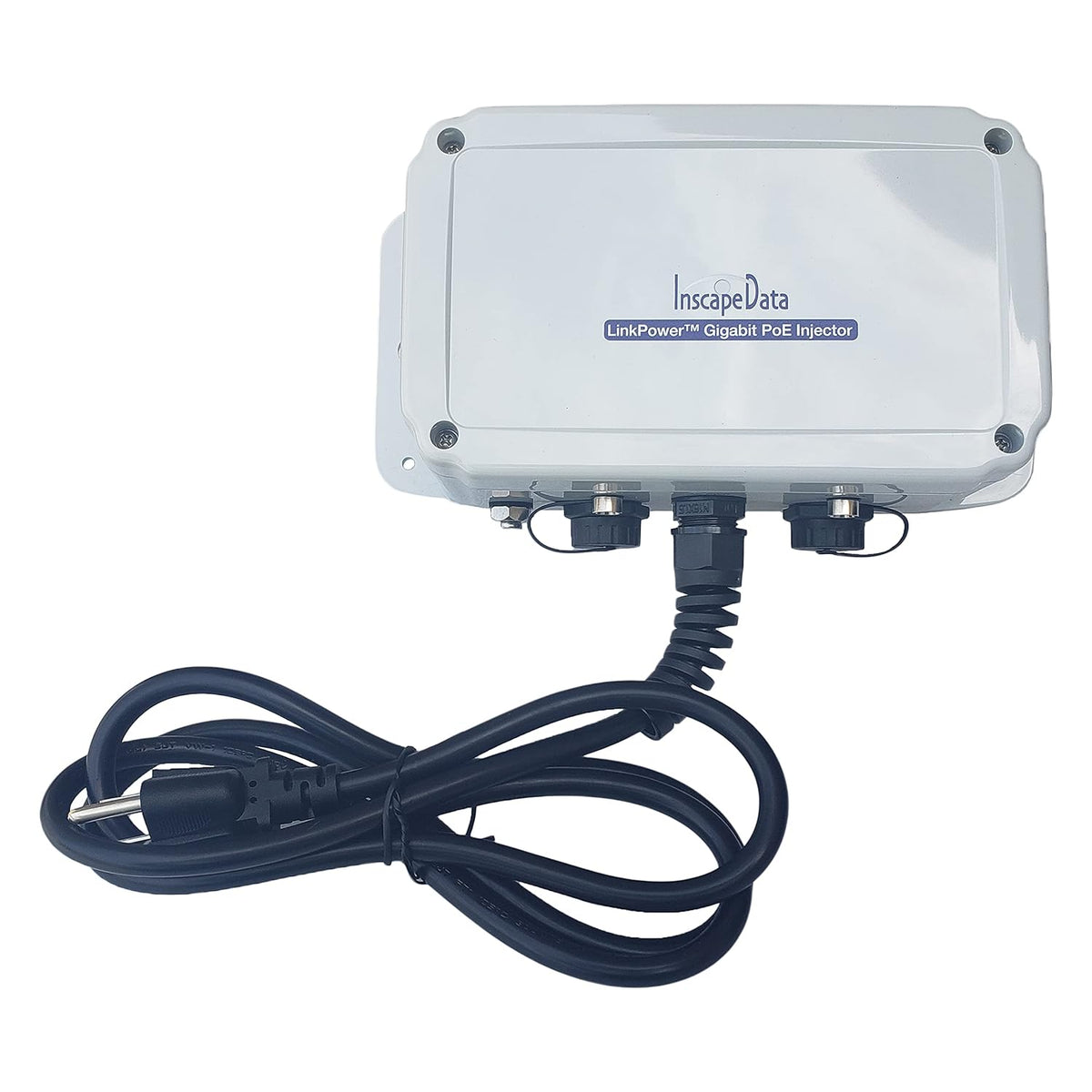

Outdoor 2-Port Gigabit PoE Injector L750348
Outdoor 2-Port Gigabit PoE Injector L750348
Built-in AC to DC power supply to deliver power over an Ethernet cable to all Type 1/15.4W, Type 2/30W, and Type 3 Class 6 60W powered devices

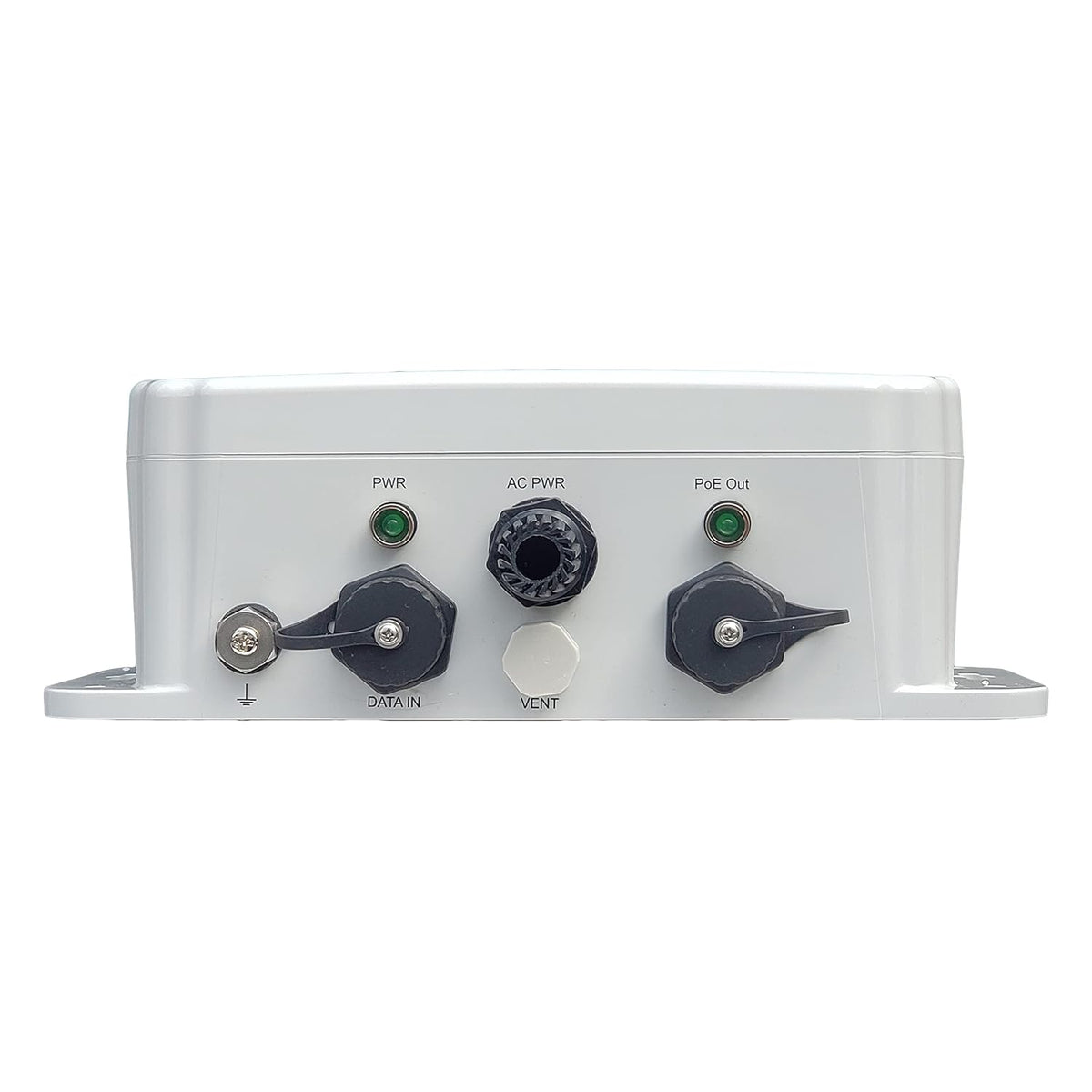

2x 10/100/1000 Mbps RJ45 ports and support network port, lightning-proof power input port (the secondary lightning protection)
PoE power supply type is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, and the negative power supply side is 3/6 or 7/8 line pair
For PIS2060, the single port PoE PSE output power is 60W, output voltage is 43.2~52.8V , and the total power is 65W
No fans, natural cooling, small and exquisite, no noise design, suitable for outdoor installation
IP67 weatherproof compliant, operating temperature:-22ºF to +158ºF (-30ºC to +70ºC) C
Designed and Made in the U.S.A., 3-Year Warranty
Inscape Data’s LinkPower PIS2060 is a 2-Port 10/100/1000M Gigabit Hi-Power PoE (Power over Ethernet) Injectors capable of delivering 60W PoE power, and PIS2060 supports IEEE802.3bt Class 6 high power standard that is backward compatible with IEEE 802.3af/IEEE802.3at standards. There are two RJ45 network ports, and one of which is used as an uplink port to a switch or to another network device. Another network port is the PoE port that integrated PoE power output and network data. These hi-power outdoor PoE injectors, IP67 weatherproof compliant, deliver DC output simplifies the overall installation by eliminating the need for a power cord, such as, high power network dome cameras or other high power wireless radio devices.
